Problem in stereo during bitrate switching and frame erasure

Basic info

Bug description

sometime after the decoder verification, a new issue appeared in bitrate switching and frame lost for the stereo mode. The decoder is switching from 96 kbps to 128 kbps and then it loses 2 frames consecutively. The second lost frame shows a major artefact.

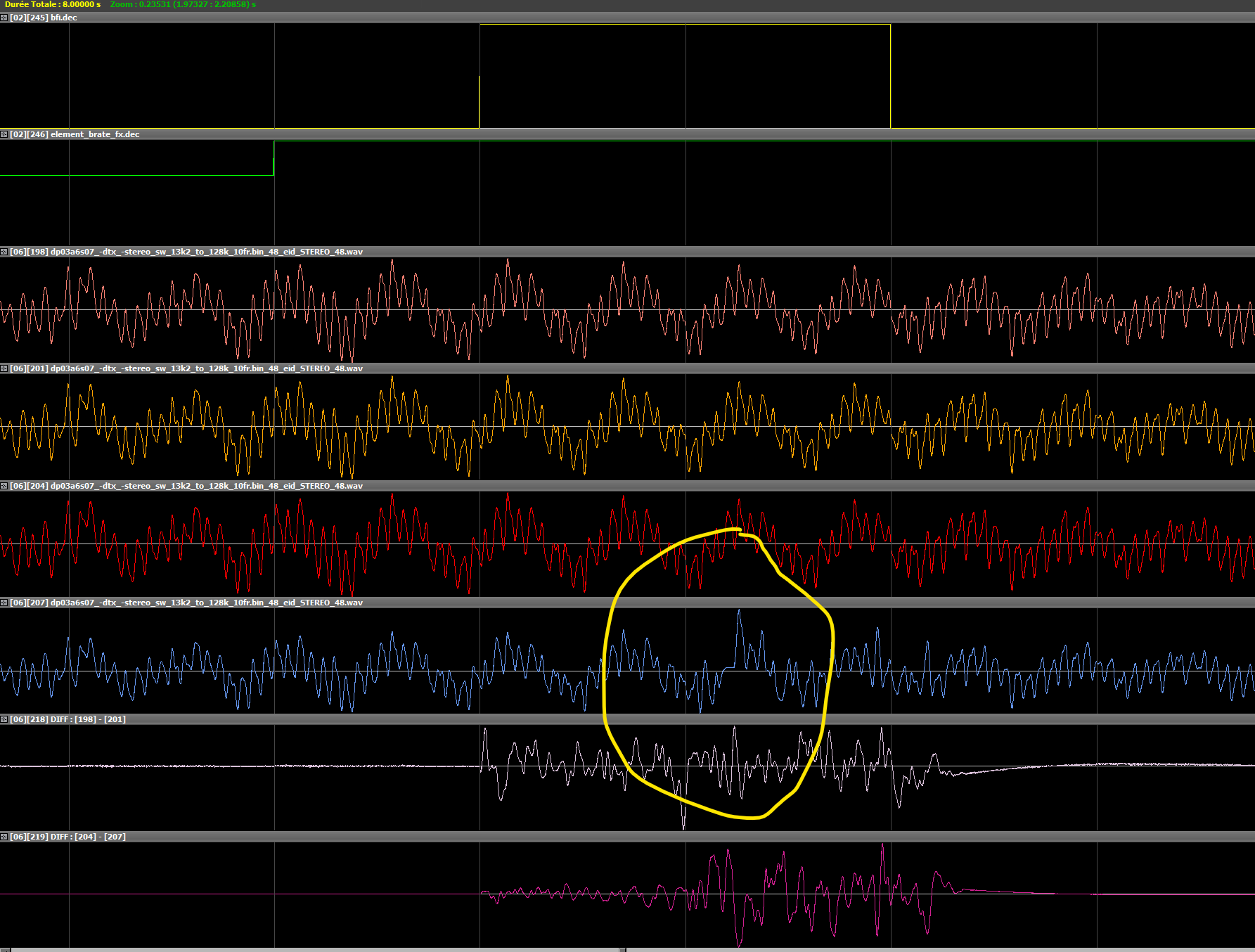

on the image below, from top to bottom,

  • 1: Bad frame indicator (1 = frame lost)
  • 2: element bit rate
  • 3: float decoder around verification time, left channel
  • 4: fixed point decoder around verification time, left channel
  • 5: current float decoder, left channel
  • 6: current fixed point decoder, left channel
  • 7: diff between 3 and 4
  • 8: diff between 5 and 6


Ways to reproduce

both the bitstreams with and without frame lost are uploaded to Box at :

_EXTERNAL_IVAS_BASOP_VERIFICATION\issues\issue-1048

dp03a6s07_-dtx_-stereo_sw_13k2_to_128k_10fr.bin_48.bit (no frame lost)

dp03a6s07_-dtx_-stereo_sw_13k2_to_128k_10fr.bin_48_eid.bfi (problematic bitstream)

command line :

IVAS_dec stereo 48 bit syn

Edited by vaillancour
