BASOP encoder ParamISM: high MLD and audible artifacts

Basic info

• Float reference:
  • Encoder (float): f7a0e207 (ivas-float-update)
• Fixed point:
  • Decoder (fixed): 12778592 (main)

Bug description

• high MLD values ( approx 21 )
• audible artifacts in different places
  • fx has additions strong "scratching" artifacts (1)
  • "kling" sound is really muffled (2)

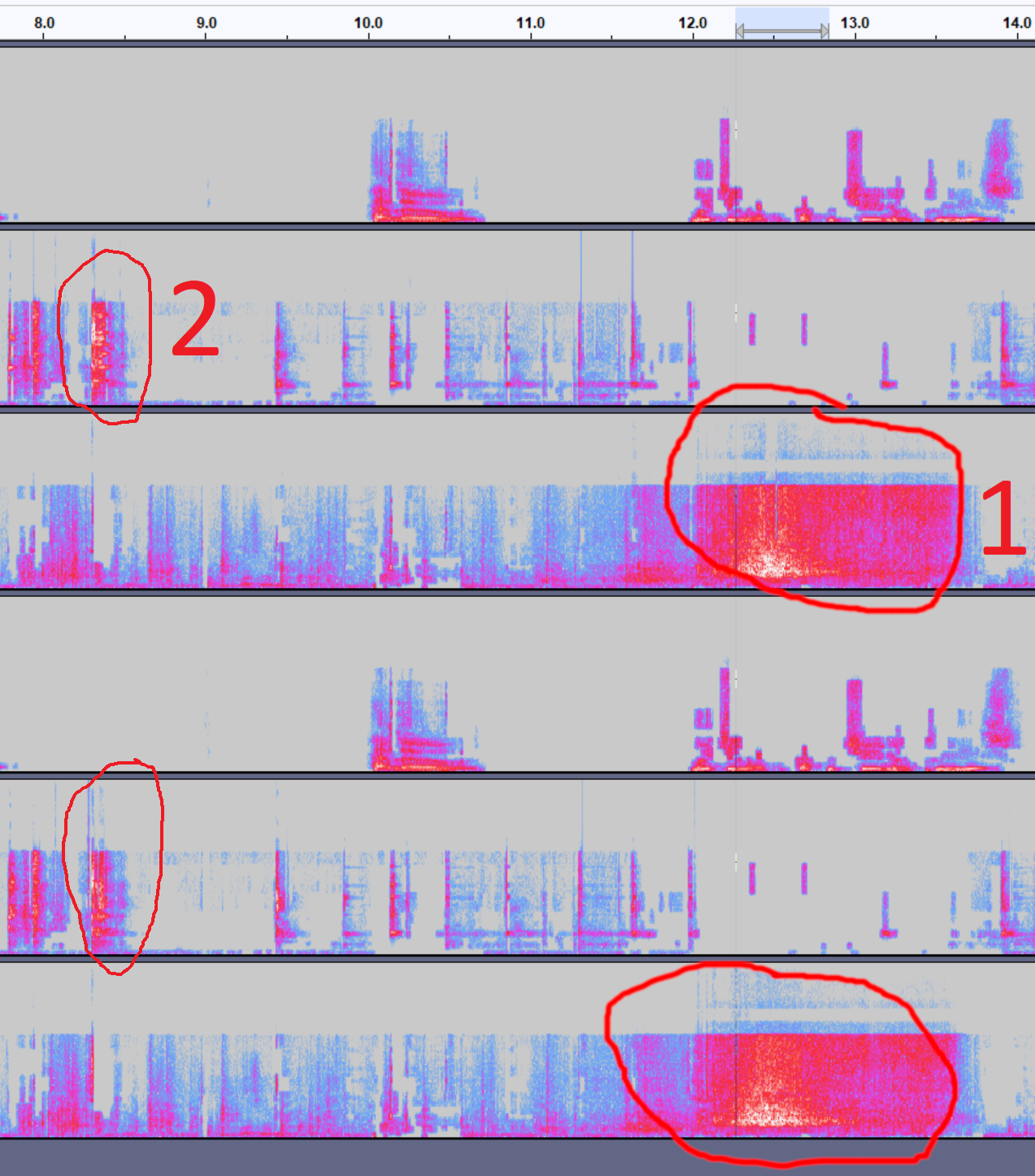

the 3 top channels come from the float encoder the bottom ones from the fixed-point

Ways to reproduce

Box folder: ...\Box_EXTERNAL_IVAS_BASOP_VERIFICATION\issues\issue-1201

./IVAS_cod_flt_ref -q -ism 3 bm6aa1s14.0.csv bm6aa1s14.1.csv bm6aa1s14.2.csv -max_band FB 24400 48 bm6aa1s14_48.wav bit_flt

./IVAS_cod_fx -q ism 3 bm6aa1s14.0.csv bm6aa1s14.1.csv bm6aa1s14.2.csv -max_band FB 24400 48 bm6aa1s14_48.wav bit_fx

./IVAS_dec_flt_ref -q EXT 48 bit decoded.wav
