High MLD for ParamMC 5.1 at 80 kbps with +10dB Input gain

Basic info

• Float reference:
  • Encoder (float): 5067d70d
  • Decoder (float): 5067d70d
• Fixed point:
  • Encoder (fixed): f5041511
  • Decoder (fixed):

Bug description

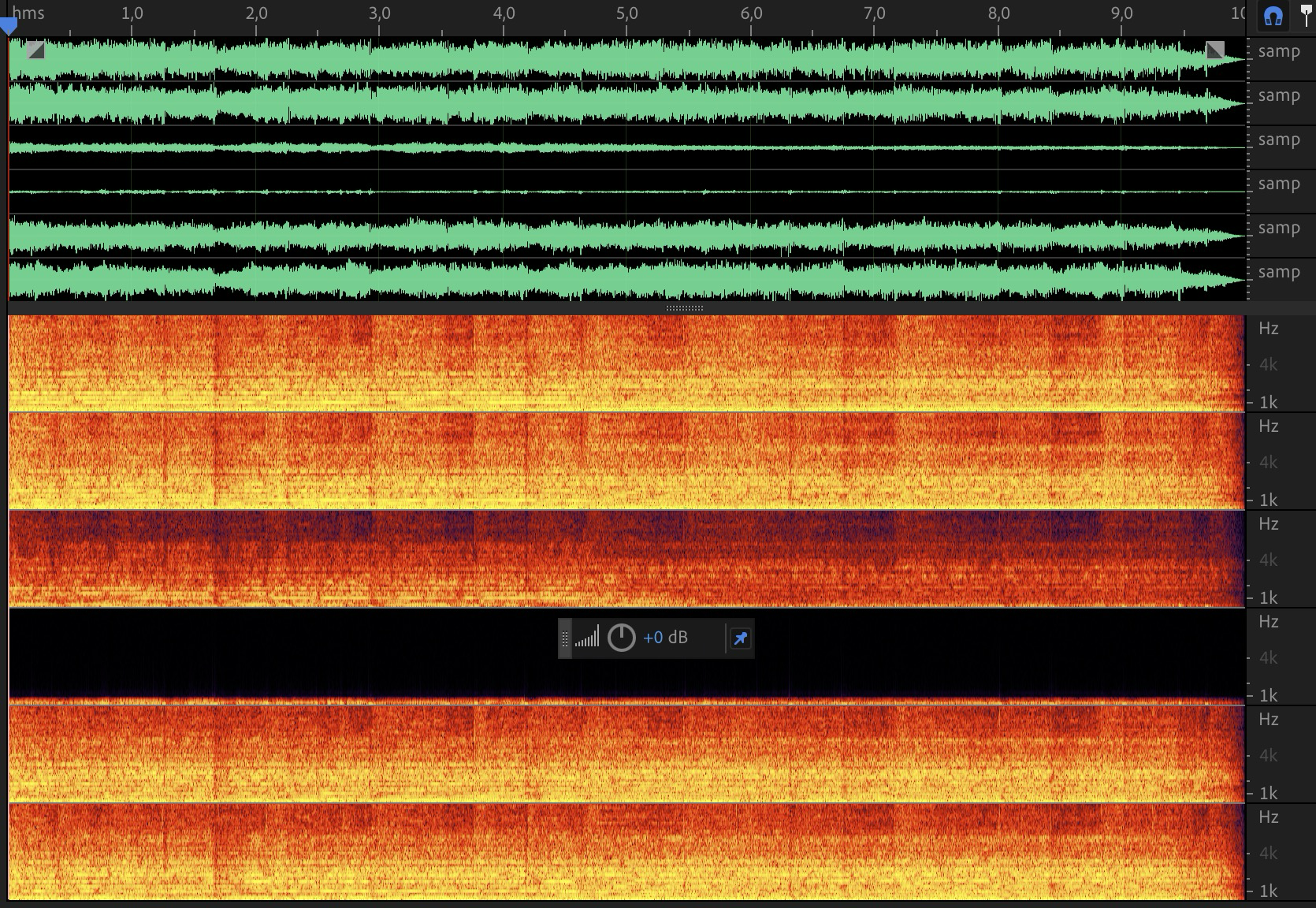

The fixed point encoded output has almost 2 LUFS higher loudness than the float reference, visually inspecting the spectrogram shows a potential problem with scaling of values:

Float reference (-5.15 LUFS):

Fixed point encoder (-3.30 LUFS):

These signals have a very high MLD of 31.67.

Ways to reproduce

Input vector has been uploaded.

Box folder: ...\Box_EXTERNAL_IVAS_BASOP_VERIFICATION\issues\issue-1267

./IVAS_cod_fx -mc 5_1 -max_band FB 80000 48 bm2aa1s12_48.10dB.wav bit
./IVAS_dec_flt_ref 5_1 48 bit out.wav
