Preprocessing time-domain issues

Basic info

  • Fixed point:

Bug description

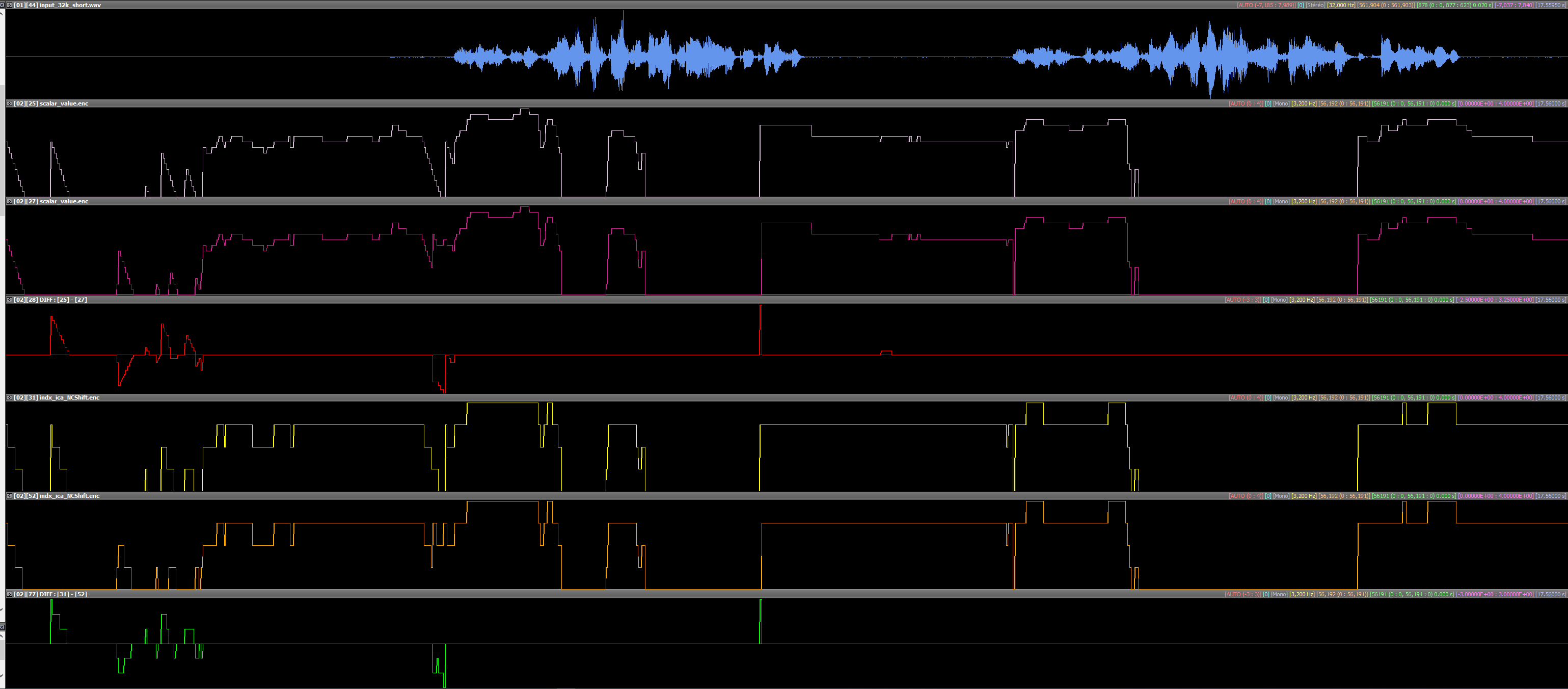

For the time domain stereo, the ICA is systematically under-estimated the time shift as seen in the figure below.

from top to bottom :

  • input signal
  • time shift (input to quantized) float
  • time shift (input to quantized) fixed point
  • difference between float and fixed point input to the quantizer
  • output of the quantized float
  • output of the quantized fixed point
  • difference between float and fixed of the quantized output

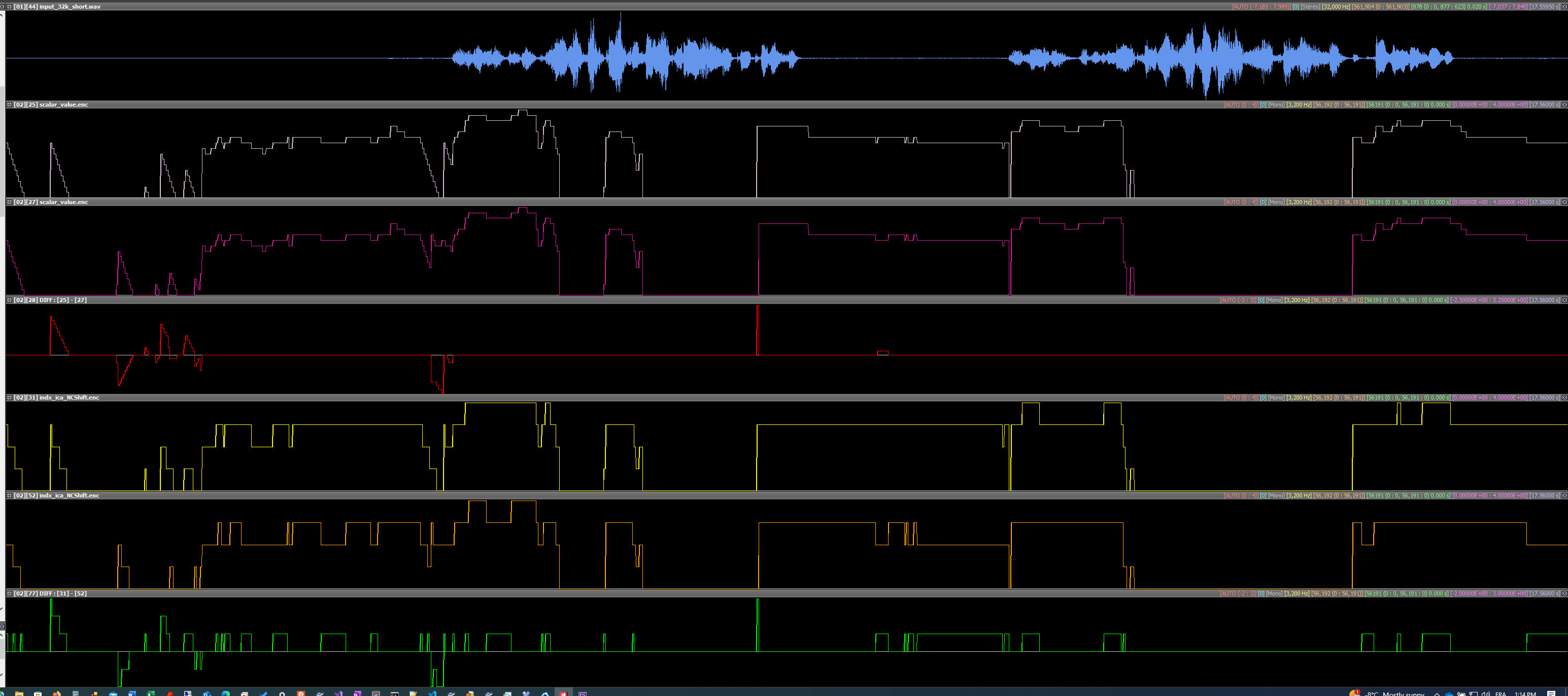

The next figure shows the same plot as above, but with the correction proposed in !1135 (merged) . It can be seen that when the input to the quantize is the same between float and fixed point, the output is the same as well


Ways to reproduce

Box folder: ...\Box_EXTERNAL_IVAS_BASOP_VERIFICATION\issues\issue-xxxx

input_32k_short

IVAS_cod -STEREO 2 32000 32 input_32k_short bit
Edited by vaillancour
