Somewhat high MLD for BASOP encoder with MASA format rate switching using selection test item

Basic info

• Float reference:
  • Encoder (float): 2e062fa2
  • Decoder (float): 2e062fa2
• Fixed point:
  • Encoder (fixed): 2805f2da
  • Decoder (fixed): 2805f2da

Bug description

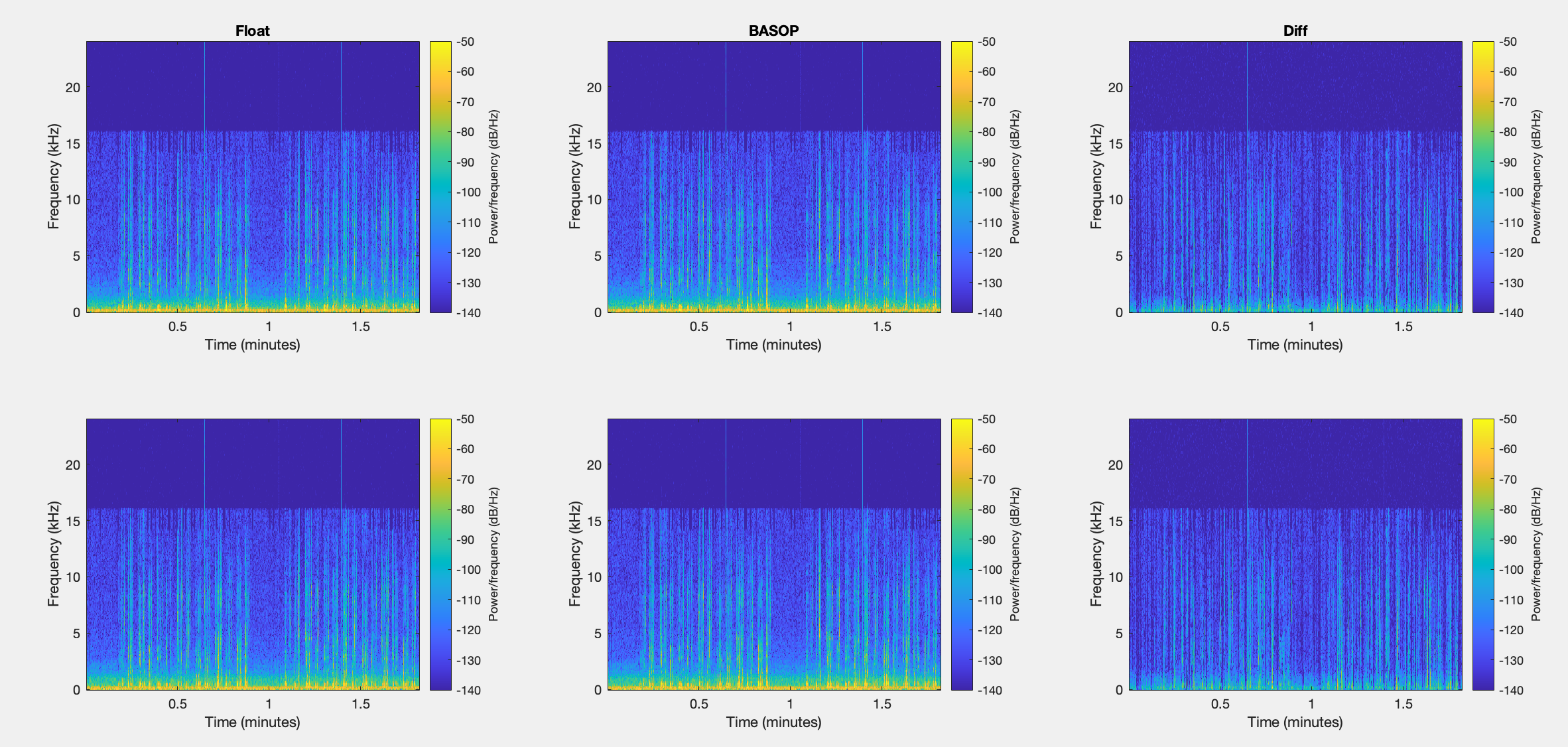

When testing BASOP encoder, there was one rate switching case for selection test MASA that has higher MLD scores (above 17) than many other similar cases. The spectrogram shows almost constant diff but no clear specific indication what is happening. As this is MASA EXT output, the spectrogram is from the transports.

Ways to reproduce

Box folder: ...\Box_EXTERNAL_IVAS_BASOP_VERIFICATION\issues\issue-1692

Use the files from Box

IVAS_cod -masa 2 BASOP_Selection_P800-9a_cat2.met -max_band swb generic_start_128k_20frames.bin 48 BASOP_Selection_P800-9a_cat2.wav test_2314.bs
IVAS_dec EXT 48 test_2314.bs 2314_BASOP_Selection_P800-9a_cat2.wav_generic_start_128k_20frames_48-48___EXT.wav
