Rendering MASA LTV has severe audible distortions

Basic info

• Float reference:
  • Renderer (float): f40fa467
• Fixed point:
  • Renderer (fixed): ced61be1

Bug description

Using external renderer for rendering MASA2 input to, e.g., STEREO or BINAURAL results into severe audible "bubbling" artifacts. MLD is over 30 for both binaural and stereo outputs. FOA output has much lower MLD, but even that is over 10.

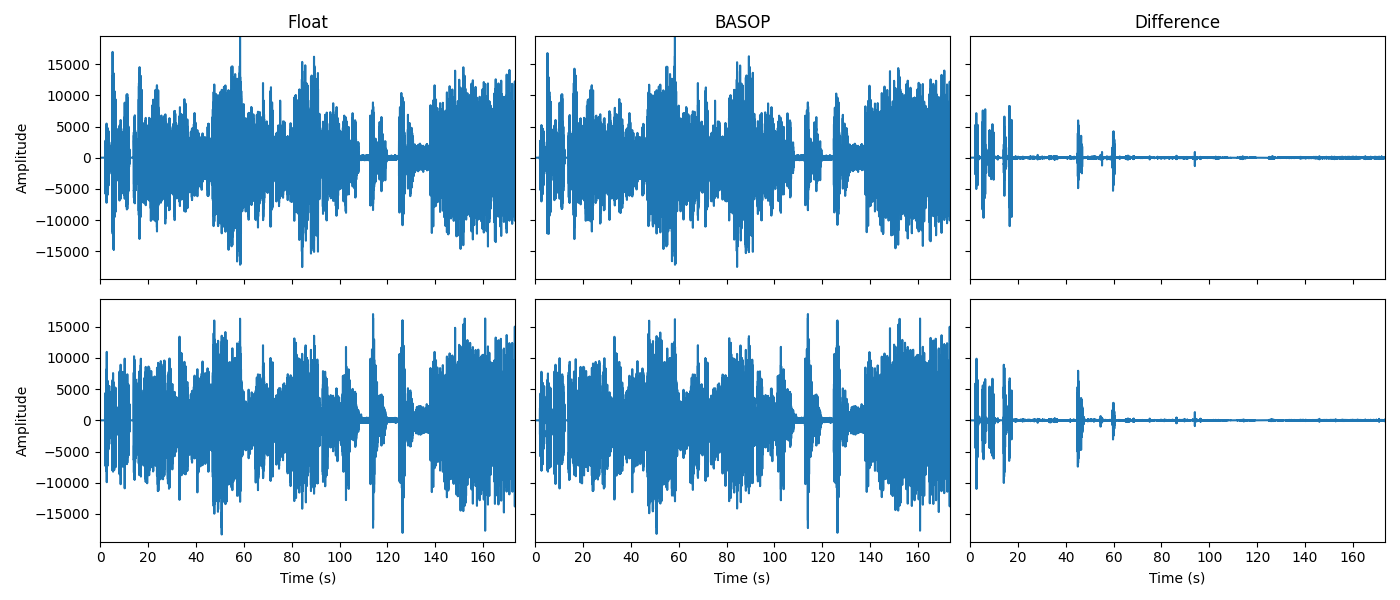

Below is a waveform comparison clearly showing the artifacts in the difference signal

Ways to reproduce

Using LTV items.

IVAS_rend -q -no_delay_cmp -if masa2 -i ivas-pc-testfiles/ltv48_MASA2TC.wav -fs 48 -im ivas-pc-testfiles/ltv48_MASA2TC.met -of STEREO -o 0014_ltv48_MASA2TC.wav_STEREO-no_delay_cmp.wav
