BASOP Asserts for BINAURAL_ROOM_REVERB output on main-pc

Basic info

  • Encoder and Decoder (main-pc): b4d3594a

Bug description

In ivas-codec-pc/ivas-codec!2176 (closed) some previously deactivated testcases are activated again for main-pc/float-pc. A pipeline run for main-pc revealed that some of these cases with BINAURAL_ROOM_REVERB output trigger a BASOP Assert:

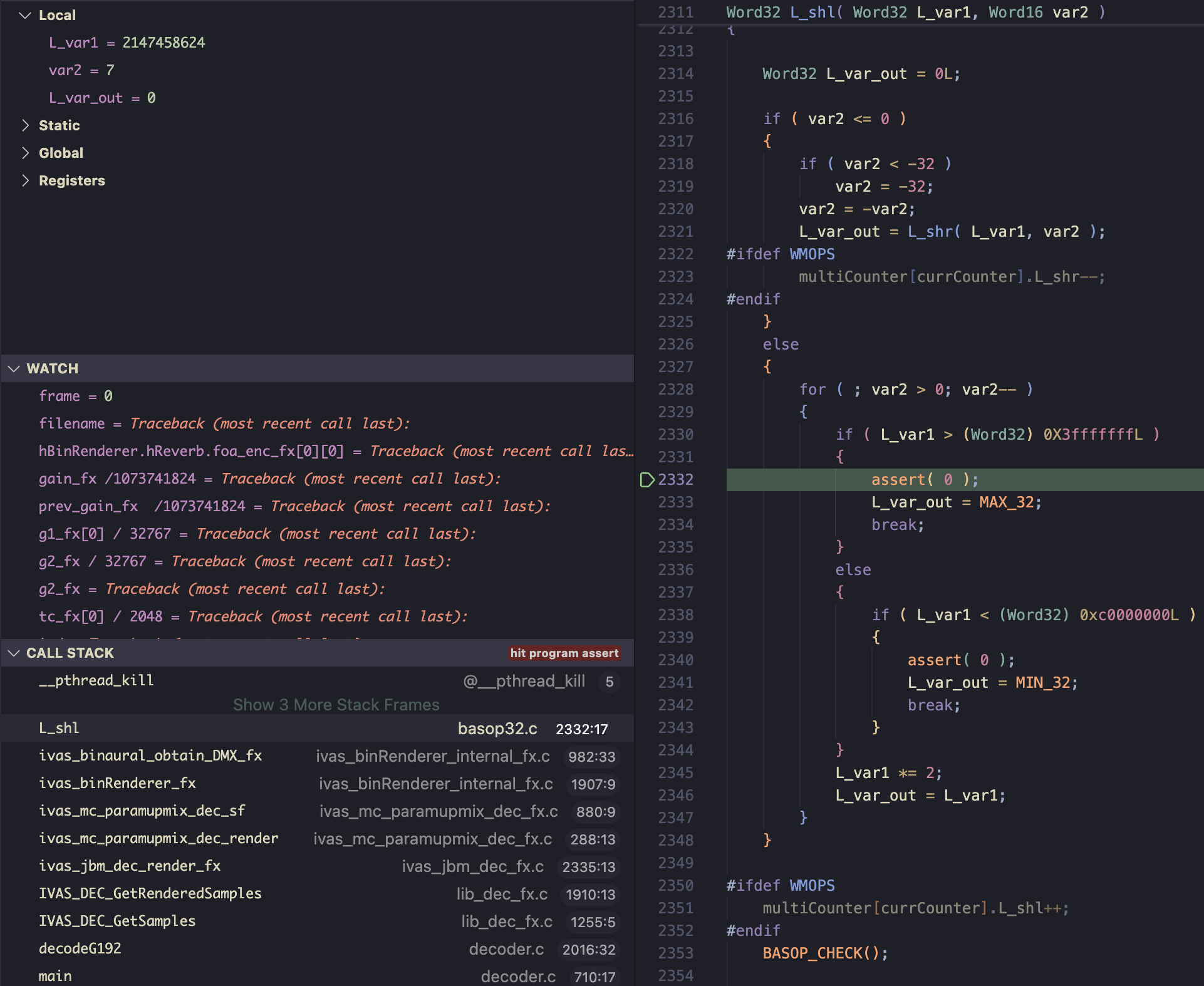

Screenshot_2025-07-08_at_07.50.04

The triggering code is in ivas_binaural_obtain_DMX_fx():

            FOR( bandIdx = 0; bandIdx < hBinRenderer->conv_band; bandIdx++ )
            {
                P_out_fx = 0;
                move32();
                FOR( k = 0; k < numTimeSlots; k++ )
                {
                    temp1_fx = realDMX[chOutIdx][k][bandIdx];
                    move32();
                    temp2_fx = imagDMX[chOutIdx][k][bandIdx];
                    move32();
                    P_out_fx = L_add( P_out_fx, L_add( Mpy_32_32( temp1_fx, temp1_fx ), Mpy_32_32( temp2_fx, temp2_fx ) ) ); // Q31-2*Q_in
                }
                test();
                IF( ( P_in_fx[bandIdx] <= 0 ) || ( P_out_fx <= 0 ) )
                {
                    factEQ_fx = 0x40000000; // 1.0f in Q30
                    move32();
                }
                ELSE
                {
                    Word16 div = divide3232( P_in_fx[bandIdx], P_out_fx );
                    Word16 exp = norm_l( div );
                    factEQ_fx = Sqrt32( L_shl( div, Q16 ), &exp );
                    factEQ_fx = L_shl( factEQ_fx, sub( exp, 1 ) ); // Q30 // <--------------------- Assert happens in here
                }
                if ( factEQ_fx <= 0 )
                {
                    factEQ_fx = 0x40000000; // 1.0f in Q30
                    move32();
                }

Ways to reproduce

See here for the failed testcases. One example below

/IVAS_cod_main-pc -mc 7_1_4 160000 48 scripts/testv/stv714MC48c.wav bit
./IVAS_dec_main-pc BINAURAL_ROOM_REVERB 48 bit out.wav
