[regression-merge] Decoder OMASA rateswitch JBM increased MAX_ASB_DIFF

Basic info

Status quo:

  • Encoder (float): ivas-float-update (c2135116)
  • Decoder (fixed-point): main (b480684c)

Post-merge:

  • Encoder (float): float-pc-clone-for-merge (92d4831d)
  • Decoder (fixed-point): main-pc-clone-for-merge (10615874)

Bug description

OMASA rateswitch into 32 kHz STEREO output with JBM shows increased MAX_ABS_DIFF.

Output signals from float enc + float dec status quo (Reference) and post-merge (Test): dec_6_Float

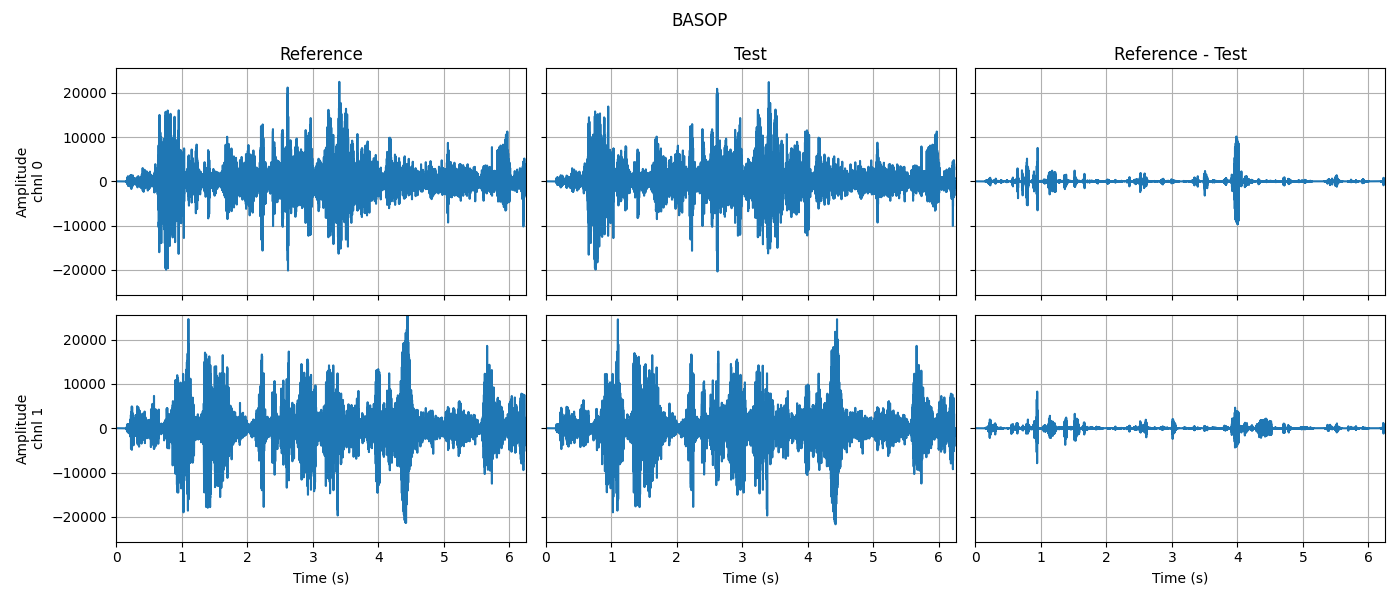

Output signals from float enc + BASOP dec status quo (Reference) and post-merge (Test): dec_6_BASOP

Main change is at time instant just before 1s.

There is quite large MAX_ABS_DIFF already in the pre-merge state, so maybe this is not a significant problem in this merge.

Ways to reproduce

Commandline:

IVAS_cod -ism_masa 3 1 scripts/testv/stvISM1.csv scripts/testv/stvISM2.csv scripts/testv/stvISM3.csv scripts/testv/stv2MASA1TC48c.met scripts/switchPaths/sw_13k2_512k_2fr_start_48k_omasatechs_3ism.bin 48 scripts/testv/stvOMASA_3ISM_2MASA1TC48c.wav stvOMASA_3ISM_2MASA1TC48c.wav_OMASA_2Dir1TC_3ISM_at_br_sw_techs_13_2_to_512_kbps_start_48_kbps_48kHz_in_32kHz_out_STEREO_out_JBM_Prof_5.192
networkSimulator_g192 scripts/dly_error_profiles/dly_error_profile_5.dat stvOMASA_3ISM_2MASA1TC48c.wav_OMASA_2Dir1TC_3ISM_at_br_sw_techs_13_2_to_512_kbps_start_48_kbps_48kHz_in_32kHz_out_STEREO_out_JBM_Prof_5.192 stvOMASA_3ISM_2MASA1TC48c.wav_OMASA_2Dir1TC_3ISM_at_br_sw_techs_13_2_to_512_kbps_start_48_kbps_48kHz_in_32kHz_out_STEREO_out_JBM_Prof_5.netsimout stvOMASA_3ISM_2MASA1TC48c.wav_OMASA_2Dir1TC_3ISM_at_br_sw_techs_13_2_to_512_kbps_start_48_kbps_48kHz_in_32kHz_out_STEREO_out_JBM_Prof_5.netsimtrace 2 0
IVAS_dec -fr 20 -Tracefile tests/dut/param_file/dec/stvOMASA_3ISM_2MASA1TC48c.wav_OMASA_2Dir1TC_3ISM_at_br_sw_techs_13_2_to_512_kbps_start_48_kbps_48kHz_in_32kHz_out_STEREO_out_JBM_Prof_5.dectrace -VOIP STEREO 32 tests/dut/param_file/enc/stvOMASA_3ISM_2MASA1TC48c.wav_OMASA_2Dir1TC_3ISM_at_br_sw_techs_13_2_to_512_kbps_start_48_kbps_48kHz_in_32kHz_out_STEREO_out_JBM_Prof_5.netsimout stvOMASA_3ISM_2MASA1TC48c.wav_OMASA_2Dir1TC_3ISM_at_br_sw_techs_13_2_to_512_kbps_start_48_kbps_48kHz_in_32kHz_out_STEREO_out_JBM_Prof_5.dec.wav

(Edit: add netsim command)

Edited by Jouni Paulus
