Temporal discontinuities during silence

with 04440bc5 and P7c3a-stereo_-dtx_24400_48.zip

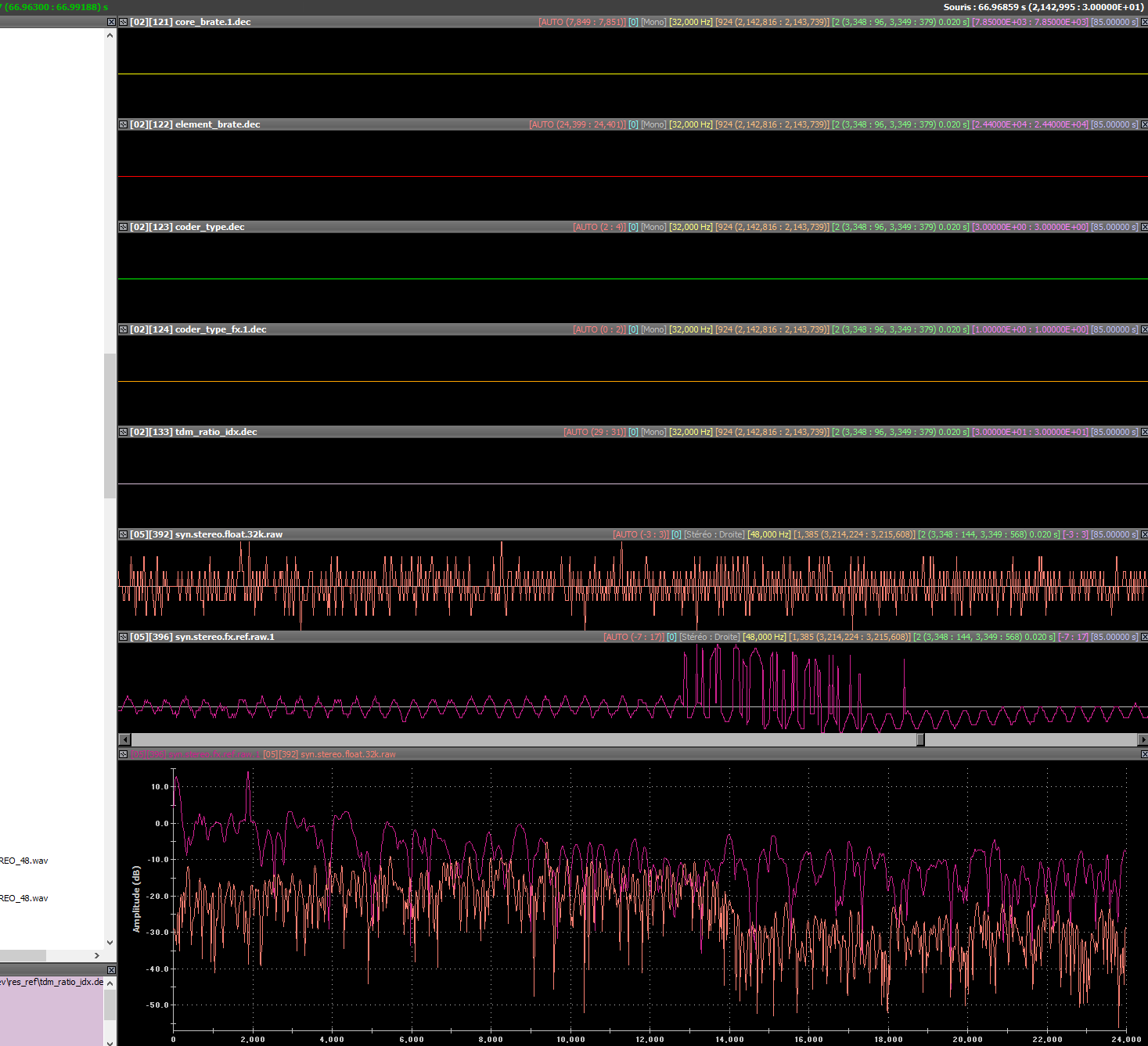

The next figure from top to bottom:

  • Core bitrate secondary channel
  • element bitrate
  • coder_type primary channel
  • coder_type secondary channel
  • ratio_index (mixing factor between the 2 channel)
  • right channel float
  • right channel fixed point
  • spectrum

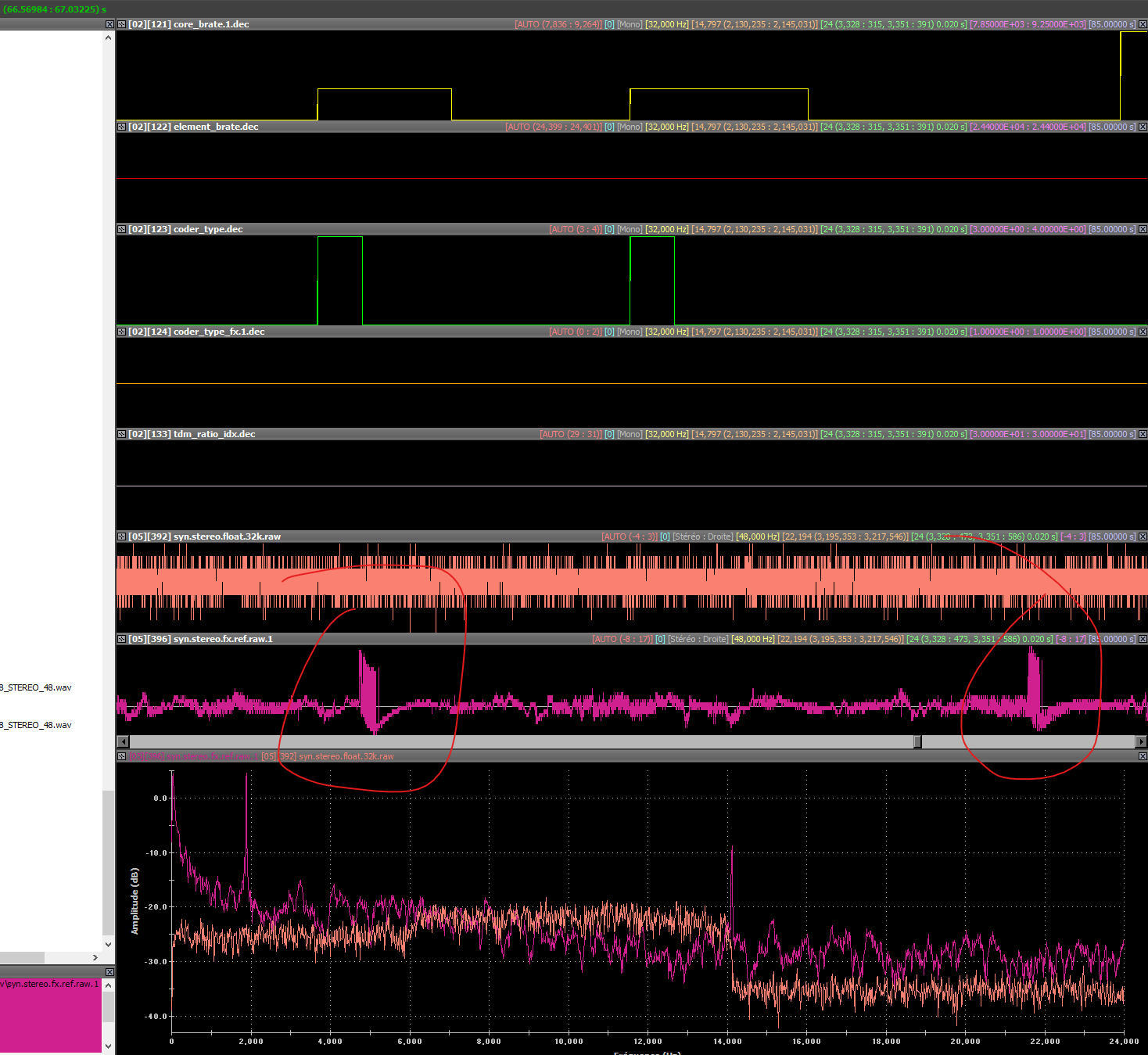

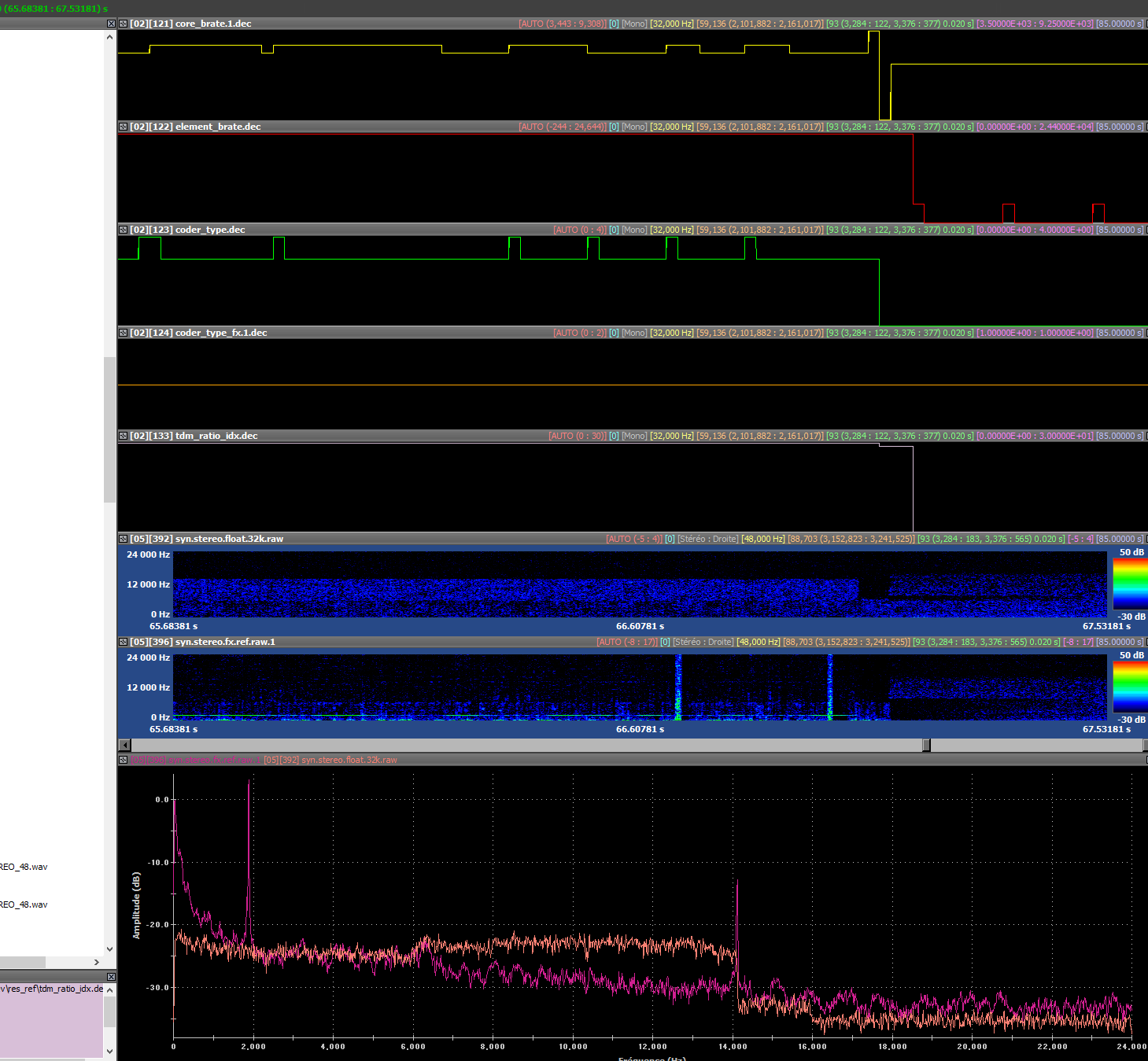

The second figure is just a temporal zoom on one of the spot and the 3rd a spectrogram showing the issue.

  • Same issue can also be observed on the left channel.
  • The issue is audible at multiple places.
  • So far not able to link it to a particular parameter/event
