High frequency differences above 6 kHz, 7.1+4 MC with FER at 32kbps

Basic info

• Encoder (float): d9fdb374
• Decoder (float): d9fdb374
• Decoder (basop): 9636c06d

Bug description

High frequencies are not correctly reproduced above ~6 kHz with 7.1+4 input and output with FER, despite the low MLD value (MLD at 32kbps = 0.47399607). Audible differences especially at the channels 5-12. Affected bitrates are at least 16.4, 24.4 and 32 kbps.

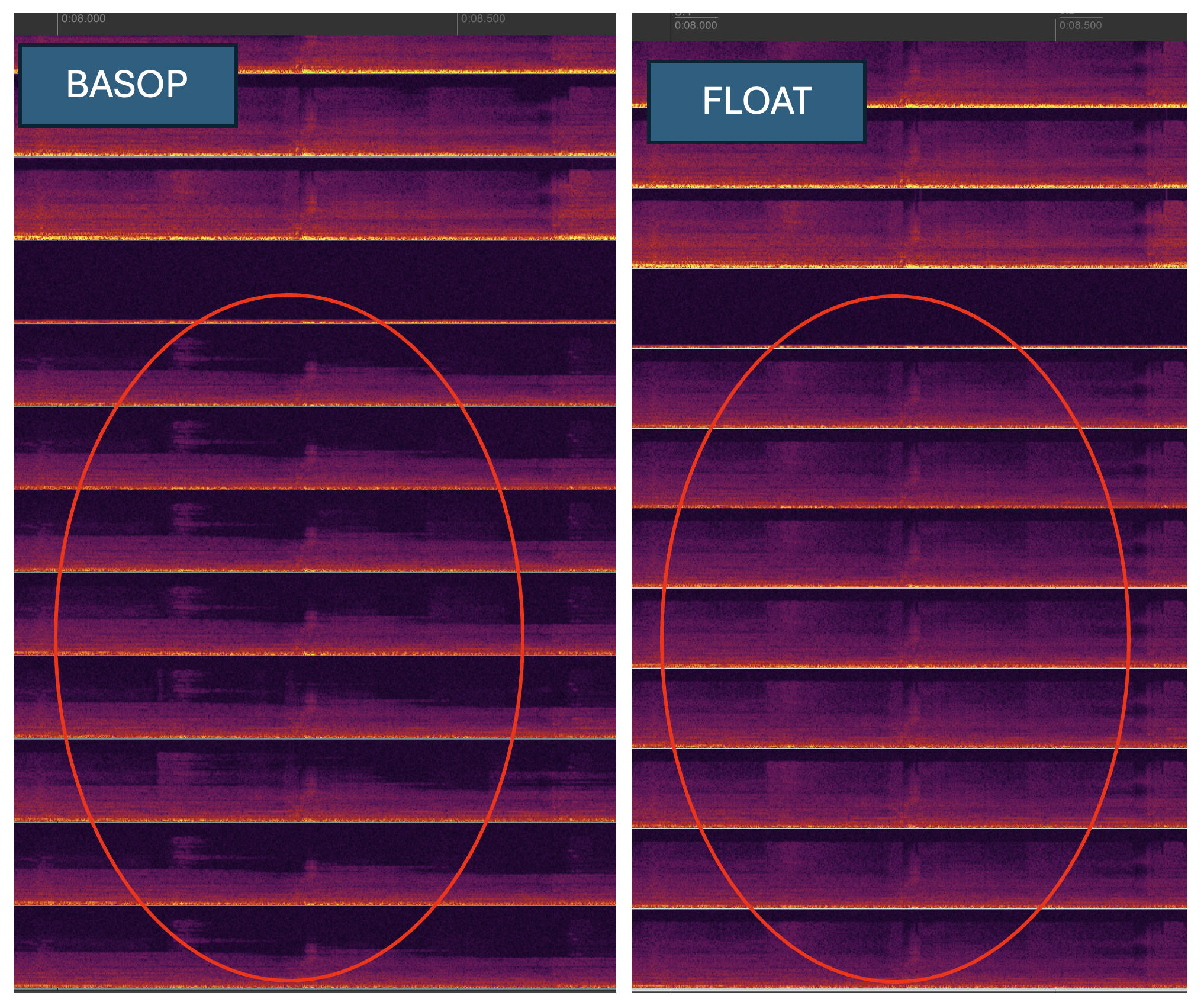

Differences of the spectrograms are clearly visible:

Ways to reproduce

./IVAS_cod -q -mc 7_1_4 -max_band fb  32000 48 in.wav bit
./eid-xor -fer -vbr -bs g192 -ep g192 bit /scripts/dly_error_profiles/ep_10pct.g192 bit_eid
./IVAS_dec -q 7_1_4 48 bit_eid out.wav
